Designing algorithms for Map Reduce

Since the emerging of Hadoop implementation, I have been trying to morph existing algorithms from various areas into the map/reduce model. The result is pretty encouraging and I've found Map/Reduce is applicable in a wide spectrum of application scenarios.

So I want to write down my findings but then found the scope is too broad and also I haven't spent enough time to explore different problem domains. Finally, I realize that there is no way for me to completely cover what Map/Reduce can do in all areas, so I just dump out what I know at this moment over the long weekend when I have an extra day.

Notice that Map/Reduce is good for "data parallelism", which is different from "task parallelism". Here is a description about their difference and a general parallel processing design methodology.

I'll cover the abstract Map/Reduce processing model below. For a detail description of the implementation of Hadoop framework, please refer to my earlier blog here.


Abstract Processing Model
There are no formal definition of the Map/reduce model. Basic on the Hadoop implementation, we can think of it as a "distributed merge-sort engine". The general processing flow is as follows.

• Input data is "split" into multiple mapper process which executes in parallel
• The result of the mapper is partitioned by key and locally sorted
• Result of mapper of the same key will land on the same reducer and consolidated there
• Merge sorted happens at the reducer so all keys arriving the same reducer is sorted

Within the processing flow, user defined functions can be plugged-in to the framework.

• map(key1, value1) -> emit(key2, value2)
• reduce(key2, value2_list) -> emit(key2, aggregated_value2)
• combine(key2, value2_list) -> emit(key2, combined_value2)
• partition(key2) return reducerNo

Design the algorithm for map/reduce is about how to morph your problem into a distributed sorting problem and fit your algorithm into the user defined functions of above.

To analyze the complexity of the algorithm, we need to understand the processing cost, especially the cost of network communication in such a highly distributed system.

Lets first consider the communication between Input data split and Mapper. To minimize this overhead, we need to run the mapper logic at the data split (without moving the data). How well we do this depends on how the input data is stored and whether we can run the mapper code there. For HDFS and Cassandra, we can the mapper at the storage node and the scheduler algorithm of JobTracker will assign the mapper to the data split that it collocates with and hence significantly reduce the data movement. Other data store such as Amazon S3 doesn't allow execution of mapper logic at the storage node and therefore incur more data traffic.

The communication between Mapper and Reducer cannot be collocated because it depends on the emit key. The only mechanism available is the combine() function which can perform a local consolidation and hence can reduce the data sent to the reducer.

Finally the communication between the reducer and the output data store depends on the store's implementation. For HDFS, the data is triply replicated and hence the cost of writing can be high. Cassandra (a NOSQL data store) allows configurable latency with various degree of data consistency trade-off. Fortunately, in most case the volume of result data after a Map/Reduce processing is not high.

Now, we see how to fit various different kinds of algorithms into the Map/Reduce model ...


Map-Only
"Embarrassing parallel" problems are those that the same processing is applied in each data element in a pretty independent way, in other words, there is no need to consolidate or aggregate individual results.

These kinds of problem can be expressed as a Map-only job (by specifying the number of reducers to zero). In this case, Mapper's emitted result will directly go to the output format.

Some examples of map-only examples are ...

• Distributed grep
• Document format conversion
• ETL
• Input data sampling

Sorting
As we described above, Hadoop is fundamentally a distributed sorting engine, so using it for sorting is a natural fit.

For example, we can use an Identity function for both map() and reduce(), then the output is equivalent to sorting the input data. Notice that we are using a single reducer here. So the merge is still sequential although the sorting is done at the mapper in parallel.

We can perform the merge in parallel by using multiple reducers. In this case, output of each reducer are sorted. We may need to do a final merge on all the reducer's output. Another way is to use a customized partition() function such that the keys are partitioned by range. In this case, each reducer is sorting a particular range and the final result is just to concatenate the each reducer's sorted result.

partition(key) {
  range = (KEY_MAX - KEY_MIN) / NUM_OF_REDUCERS
  reducer_no = (key - KEY_MIN) / range
  return reducer_no
}

Inverted Indexes
The map reduce model is originated from Google which has a lot of scenarios of building large scale inverted index. Building an inverted index is about parsing different documents to build a word -> document index for keyword search.

In fact, inverted index is pretty general and can be applied in many scenarios. To build an inverted index, we can feed the mapper each document (or lines within a document). The Mapper will parse the words in the document to emit [word, doc] pairs along with other metadata such as where in the document this word occurs ... etc. The reducer can simply be an identity function that just dump out the list, or it can perform some statistic aggregation per word.

In a more general form of Inverted index, there is a "container" and "element" concept. The Map and Reduce function will be organized in the following patterns.

map(key, container) {
  for each element in container {
      element_meta =
           extract_metadata(element, container)
      emit(element, [container_id, element_meta])
  }
}

reduce(element, container_ids) {
  element_stat =
       compute_stat(container_ids)
  emit(element, [element_stat, container_ids])
}

In Text index, we are not just counting the actual frequency of the terms but also adjust its weighting based on its frequency distribution so common words will have less significance when they appears in the document. The final value after normalization is called TF-IDF (term frequency times inverse document frequency) and can be computed using Map Reduce as well.


Simple Statistics ComputationComputing max, min, count is very straightforward since this operation is commutative and associative. Each mapper will perform the local computation and send the result to a single reducer to do the final computation.

Combine function is typically used to reduce the network traffic. Notice that the input to the combine function must look the same as the input to the reducer function and the output of the combine function must look the same as the output of the map function. There is also no guarantee that the combiner function will be invoked at all.

class Mapper {
  buffer

  map(key, number) {
      buffer.append(number)
      if (buffer.is_full) {
          max = compute_max(buffer)
          emit(1, max)
      }
  }
}


class Reducer {
  reduce(key, list_of_local_max) {
      global_max = 0
      for local_max in list_of_local_max {
          if local_max > global_max {
              global_max = local_max
          }
      }        emit(1, global_max)
  }
}


class Combiner {
  combine(key, list_of_local_max) {
      local_max = maximum(list_of_local_max)
      emit(1, local_max)
  }
}

Computing avg is done in a similar way except that instead of computing the local avg, we compute the local sum and local count. The reducer will do the final sum divided by the final count to come up with the final avg.

Computing a histogram is pretty common in statistics and can give a quick idea about the data distribution. A typical approach is to divide the number into different intervals. The mapper will compute the count per interval, and emit that per interval and the reducer will compute the sum of that interval.

class Mapper {
  interval_start = [0, 20, 40, 60, 80]

  map(key, number) {
      i = 0;
      while (i < NO_OF_INTERVALS) {
          if (number < interval_start[i]) {
              emit(i, 1)
              break
          }
      }
  }
}


class Reducer {
  reduce(interval, counts) {
      total_counts = 0
      for each count in counts {
          total_counts += count
      }
      emit(interval, total_counts)
  }
}


class Combiner {
  combine(interval, occurrence) {
      emit(interval, occurrence.size)
  }
}

Notice that a non-uniform distribution of values across intervals may cause an unbalanced workload among reducers and hence undermine the degree of parallelism. We'll address this in the later part of this post.


In-Mapper Combine
Jimmy Lin, in his excellent book, talks about a technique call "in-mapper combine" which regains control at the application level when the combine takes place. The general idea is to maintain a HashMap to buffer the intermediate result and has a separate logic to determine when to actually emit the data from the buffer. The general code structure is as follows ...

class Mapper {
  buffer

  init() {
      buffer = HashMap.new
  }

  map(key, data) {
      elements = process(data)
      for each element {
          ....
          check_and_put(buffer, k2, v2)
      }
  }

  check_and_put(buffer, k2, v2) {
      if buffer.full {
          for each k2 in buffer.keys {
              emit(k2, buffer[k2])
          }
      }
  }

  close() {        for each k2 in buffer.keys {
          emit(k2, buffer[k2])
      }    }
}

SQL Model
The SQL model can be used to extract data from the data source. It contains a number of primitives.

Projection / Filter
This logic is typically implemented in the Mapper

• result = SELECT c1, c2, c3, c4 FROM source WHERE conditions

Aggregation / Group by / Having
This logic is typically implemented in the Reducer

• SELECT sum(c3) as s1, avg(c4) as s2 ... FROM result GROUP BY c1, c2 HAVING conditions

The above example can be realized by the following map/reduce job

class Mapper {
  map(k, rec) {
      select_fields =
          [rec.c1, rec.c2, rec.c3, rec.c4]
      group_fields =
          [rec.c1, rec.c2]
      if (filter_condition == true) {
          emit(group_fields, select_fields)
      }
  }
}

class Reducer {
  reduce(group_fields, list_of_rec) {
      s1 = 0
      s2 = 0
      for each rec in list_of_rec {
          s1 += rec.c3
          s2 += rec.c4
      }
      s2 = s2 / rec.size
      if (having_condition == true) {
          emit(group_fields, [s1, s2])
      }
  }
}

Data Joins
Joining 2 data set is a very common operation in Relational Data Model and has been very mature in RDBMS implementation. The common join mechanism in a centralized DB architecture is as follows

1. Nested loop join -- This is the most basic and naive mechanism and is organized as two loops. The outer loop reads from data set1, the inner loop scan through the whole data set2 and compare with the records just read from data set1.
2. Indexed join -- An index (e.g. B-Tree index) is built for one of the data sets (say data set2 which is the smaller one). The join will scan through data set1 and lookup the index to find the matched records of data set2.
3. Merge join -- Pre-sort both data sets so they are arranged physically in increasing order. The join is realized by just merging the two data sets. a) Locate the first record in both data set1 & set2, which is their corresponding minimum key b) In the one with a smaller minimum key (say data set1), keep scanning until finding the next key which is bigger than the minimum key of the other data set (ie. data set2), call this the next minimum key of data set1. c) Switch position and repeat the whole thing until one of the data set is exhausted.
4. Hash / Partition join -- Partition the data set1 and data set2 into smaller size and apply other join algorithm in a smaller data set size. A linear scan with a hash() function is typically performed to partition the data sets such that data in set1 and data in set2 with the same key will land on the same partition.
5. Semi join -- This is mainly used to join two sets of data that is stored at different locations and the goal is to reduce the amount of data transfer such that only the full records appears in the final joint result will be send through. a) Data set2 will send its key set to machine holding Data set1. b) Machine holding Data set1 will do a join and send back the records in Data set1 that matches one of the send-over keys. c) The machine holding data set2 will do a final join to the data send back.

In the map reduce environment, it has the corresponding joins.

General reducer-side join
This is the most basic one, records from data set1 and set2 with the same key will land on the same reducer, which will then do a cartesian product. The downside of this model is that the reducer need to have enough memory to hold all records of each key.

map(k1, rec) {
  emit(rec.key, [rec.type, rec])
}

reduce(k2, list_of_rec) {
  list_of_typeA = []
  list_of_typeB = []
  for each rec in list_of_rec {
      if (rec.type == 'A') {
          list_of_typeA.append(rec)
      } else {
          list_of_typeB.append(rec)
      }
  }

  # Compute the catesian product
  products = []
  for recA in list_of_typeA {
      for recB in list_of_typeB {
          emit(k2, [recA, recB])
      }
  }
}

Optimized reducer-side join
You can "secondary sort" the data type for each key by defining a customized partition function. In this model, you arrange the data type (which has less records per key to arrive first) and you only need to store these types.

map(k1, rec) {
  emit([rec.key, rec.type], rec])
}

partition(key_pair) {
  super.partition(key_pair[0])
}

reduce(k2, list_of_rec) {
  list_of_typeA = []
  for each rec in list_of_rec {
      if (rec.type == 'A') {
          list_of_typeA.append(rec)
      } else { # receive records of typeA
          for recA in list_of_typeA {
              emit(k2, [recA, rec])
          }
      }
  }
}

While being very flexible, the downside of Reducer side join is that all data need to be transfer from the mapper to the reducer and then result write to HDFS. Map-side join explore some special arrangement of the input file such that the join is being perform at the mapper. The advantage of doing in the mapper is that we can exploit the collocation of the Map reduce framework such that the mapper will be allocated an input split in its local machine, hence reduce the data transfer from the disk to the mapper. After the map-side join, the result is written directly to the output HDFS files and hence eliminate the data transfer between the mapper and the reducer.

Map-side partition join
In this model, it requires the 2 data sets to be partitioned into 2 sets of partition files (same number of partitions for each set). The size of the partition is such that it can fit into the memory of the Mapper machine. We also need to configure the Map/Reduce job such that there is no split in the partition file, in other words, the whole partition is assigned to a mapper task.

The mapper will detect the partition of the input file and then read the corresponding partition file of the other data set into an in-memory hashtable. After that, the mapper will lookup the Hashtable to do the join.

class Mapper {
  map = Hashtable.new

  init() {
      partition = detect_input_filename()
      map = load("hdfs://dataset2/" + partition)
  }

  map(k1, rec1) {
      rec2 = map[rec1.key]
      if (rec2 != nil) {
          emit(rec1.key, [rec1, rec2])
      }
  }
}

Map-side partition merge join
In additional, if the partition file is also sorted, then the mapper can use a merge join, which has an even smaller memory footprint.

class Mapper {
  rec2_key = nil
  next_rec2 = nil
  list_of_rec2 = []
  file = nil

  init() {
      partition = detect_input_filename()
      file = open("hdfs://dataset2/" + partition, "r")
      next_rec2 = file.read()
      fill_rec2_list()
  }

  # Fill up the list of rec2 list which has the same key
  fill_rec2_list() {
      rec2_key = next_rec2.key
      list_of_rec2.append(next_rec2)
      next_rec2 = file.read
      while(next_rec2.key == key) {
          list_of_rec2.append(next_rec2)
      }
  }

  map(k1, rec1) {
      while (rec1.key > rec2_key) {
          fill_rec2_list()
      }
        while (rec1.key == rec2.key) {
          for rec2 in list_of_rec2 {
              emit(rec1.key, [rec1, rec2])
          }
      }
    }
}

Memcache join
The model is very straightforward, the second data set is loaded into a distributed hash table (like memcache) which has effectively unlimited size. The mapper will receive input split from the first data set and then lookup the memcache for the corresponding record of the other data set.

There are also some other more sophisticated join mechanism such as semi-join described in this paper.

Graph Algorithms
Many problems can be modeled as a graph of Node and Edges. In the Search engine environment, computing the rank of a document using Page Rank or Hits can be model as a sequence of iterations of Map/Reduce jobs.

In the past, I have been blog a number of very basic graph algorithms in map reduce including doing topological sort, finding shortest path, minimum spanning tree etc. and also how to recommend people connection using Map/Reduce.

Due to the fact that graph traversal is inherently sequential, I am not sure Map/Reduce is the best parallel processing model for graph processing. Another problem is that due to the "stateless nature" of map() and reduce() functions, the whole graph need to be transferred between mapper and reducer which incur significant communication costs. Jimmy Lin has described a clever technique called Shimmy which exploit using a special partitioning function which let the reducer to retain the ownership of nodes across map/reduce jobs. I have described this technique as well as a general model of Map/Reduce graph processing in a previous blog.

I think a parallel programming model specific for Graph processing will perform much better. Google's Pregel model is a good example of that.


Machine Learning
Many of the machine learning algorithm involve multiple iterations of parallel processing that fits very well into Map/Reduce model.

For example, we can use map reduce to calculate the statistics for probabilistic methods such as naive Bayes.

A simple example of computing K-Means cluster can also be done in the following way.

• Input: A set of points, with k initial centrods
• Output: K final centroids

Iterate until no more change of membership

1. For each point, assign it to be the member of closest centroid
2. Re-compute the centroid from the assigned point members

For a complete list of Machine learning algorithms and how they can be implemented using the Map/Reduce model, here is a very good paper.


Matrix arithmetic
A lot of real-life relationships can be represented as a Matrix. One example is the vector space model of Information Retrieval where the column represents docs and the row represents terms. Another example is the social network graph where the column as well as the row representing people and a binary value of each cell to represent a "friend" relationship. In this case, M + M.M represents all the people that I can reach within 2 degree.

Processing for dense matrix is very easy to parallelized. But since the sequential version is O(N^3), it is not that interesting for Matrix with large size (millions range in rows and columns).

A lot of real-world graph problem can be represented as sparse matrix. So my interests is to focus more in the processing of sparse matrix. I don't have much to share at this moment but I hope this is something I will blog about in future.

The Limitations of SPARQL

Recently, I have been looking at RDF model and try to compare that with the property graph model that I mention in a previous post. I also look at the SPARQL query model. While I think it is a very powerful query language based by variable bindings, I also observe a couple of limitations that it doesn't handle well.

Note that I haven't used SPARQL in very simple examples and don't claim to be expert in this area. I am hoping my post here can invite other SPARQL experts to share their experience.

Here are the limitations that I have seen.
Support of Negation

Because of the “Open World” assumption, SPARQL doesn’t support “negation” well, this means expressing "negation" in SPARQL is not easy.

• Find all persons who is Bob’s friends but doesn’t know Java
• Find all persons who know Bob but doesn't know Alice

Support of Path Expression

In SPARQL, expressing a variable length path is not easy.

• Find all posts written by Bob’s direct and indirect friends (everyone reachable from Bob)

Predicates cannot have Properties
This may be a RDF limitation that SPARQL inherits. Since RDF represents everything in Triples. It is easy to implement properties of a Node using extra Triples, but it is very difficult to implement properties in Edges.

In SPARQL, there is no way to attaching a property to a “predicate”.

• Bob knows Peter for 5 years

RDF inference Rule

Inference rules are build around RDFS and OWL which is focusing mainly on type and set relationships and is implemented using a Rule: (conditions => derived triple) expression. But it is not easy to express a derived triples whose object’s value is an expression of existing triples.

• Family income is the sum of all individual member’s income

Support of Fuzzy Matches with Ranked results
SPARQL is based on a boolean query model which is designed for exact match. Express a fuzzy match with ranked result is very difficult.

• Find the top 20 posts that is “similar” to this post ranked by degree of similarity (lets say similarity is measured by the number of common tags that the 2 posts share)

I am also very interested to see if there is any large scale deployment of RDF graph in real-life scenarios. I am not aware of any popular social network sites are using RDF to store the social graph or social activities. I guess this may be due to scalability of the RDF implementation today. I may be wrong though.

Map/Reduce to recommend people connection

Once common feature in Social Network site is to recommend people connection. e.g. "People you may know" from Linkedin. The basic idea is very simple; if person A and person B doesn't know each other but they have a lot of common friends, then the system should recommend person B to person A and vice versa.

From a graph theory perspective, for each person who is 2-degree reachable from person A, we count how many distinct paths (with 2 connecting edges) exist between this person and person A. Rank this list in terms the number of paths and show the top 10 persons that person A should connect with.

We should how we can use Map/Reduce to compute this top-10 connection list for every person. The problem can be stated as: For every person X, we determine a list of person X1, X2 ... X10 which is the top 10 persons that person X has common friends with.

The social network graph is generally very sparse. Here we assume the input records is an adjacency list sorted by name.

"ricky" => ["jay", "peter", "phyllis"]
"peter" => ["dave", "jack", "ricky", "susan"]

We use two rounds of Map/Reduce job to compute the top-10 list

First Round MR Job
The purpose of this MR job is to compute the number of distinct path between all pairs of people who is 2 degree separated from each other.

• In Map(), we do a cartesian product for all pairs of friends (since these friends may be connected in 2-dgrees). We also need to eliminate the pairs if they already have a direct connection. Therefore, the The Map() function should also emit pairs of direct connected persons. We need to order the key space such that all keys with the same pair of people with go to the same reducer. On the other hand, we need the pair of direct connection come before the pairs of 2 degree of separations.
• In Reduce(), we know all the key pairs reaching the same reducer will be sorted. So the direct connect pair will come before the 2-degree pairs. So the reducer just need to check if the first pair is a direct connected one and if so skip the rest.

Input record ...  person -> connection_list
e.g. "ricky" => ["jay", "john", "mitch", "peter"]
also the connection list is sorted by alphabetical order

def map(person, connection_list)
  # Compute a cartesian product using nested loops
  for each friend1 in connection_list
     # Eliminate all 2-degree pairs if they already
     # have a one-degree connection
     emit([person, friend1, 0])
     for each friend2 > friend1 in connection_list
         emit([friend1, friend2, 1],  1)

def partition(key)
  #use the first two elements of the key to choose a reducer
  return super.partition([key[0], key[1]])

def reduce(person_pair, frequency_list)
  # Check if this is a new pair
  if @current_pair != [person_pair[0], person_pair[1]]
      @current_pair = [person_pair[0], person_pair[1]]
      # Skip all subsequent pairs if these two person
      # already know each other
      @skip = true if person_pair[2] == 0

  if !skip
      path_count = 0
      for each count in frequency_list
          path_count += count
      emit(person_pair, path_count)

Output record ... person_pair => path_count
e.g. ["jay", "john"] => 5

Second Round MR Job

The purpose of this MR job is to rank the connections for every person by the number of distinct path between them.

• In Map(), we rearrange the input records so it will be sorted before reaching the reducer
• In Reduce(), all the connections from the person is sorted, we just need to aggregate the top 10 to a list and then write the list out.

Input record = Output record of round 1

def map(person_pair, path_count)
  emit([person_pair[0], path_count], person_pair[1])

def partition(key)
  #use the first element of the key to choose a reducer
  return super.partition(key[0])

def reduce(connection_count_pair, candidate_list)
  # Check if this is a new person
  if @current_person != connection_count_pair[0]
      emit(@current_person, @top_ten)
      @top_ten = []
      @current_person = connection_count_pair[0]

  #Pick the top ten candidates to connect with
  if @top_ten.size < 10
      for each candidate in candidate_list
          @top_ten.append([candidate, connection_count_pair[1]])
          break if @pick_count > 10

Output record ... person -> candidate_count_list
e.g.  "ricky" => [["jay", 5],  ["peter", 3] ...]

Graph Processing in Map Reduce

In my previous post about Google's Pregel model, a general pattern of parallel graph processing can be expressed as multiple iterations of processing until a termination condition is reached. Within each iteration, same processing happens at a set of nodes (ie: context nodes).

Each context node perform a sequence of steps independently (hence achieving parallelism)

1. Aggregate all incoming messages received from its direct inward arcs during the last iteration
2. With this aggregated message, perform some local computation (ie: the node and its direct outward arcs' local state)
3. Pass the result of local computation along all outward arcs to its direct neighbors

This processing pattern can be implemented using Map/Reduce model, using a MR job for each iteration. The sequence is a little different from above. Typically a mapper will perform (2) and (3) where it emits the message using its neighbor's node id as key. Reducer will be responsible to perform (1).

Issue of using Map/Reduce

However, due to the functional programming nature of Map() and Reduce(), M/R does not automatically retain "state" between jobs. To retain the graph across iterations, the mapper need to explicitly pass along the corresponding portion of the graph to the reducer, in additional to the messages itself. Similarly, the reducer need to handle a different type of data passed along.

map(id, node) {
  emit(id, node)
  partial_result = local_compute()
  for each neighbor in node.outE.inV {
      emit(neighbor.id, partial_result)
  }
}

reduce(id, list_of_msg) {
  node = null
  result = 0

  for each msg in list_of_msg {
      if type_of(msg) == Node
          node = msg
      else
          result = aggregate(result, msg)
      end
  }

  node.value = result
  emit(id, node)
}

This downside of this approach is a substantial amount of I/O processing and bandwidth is consumed to just passing the graph itself around.

Google's Pregel model provides an alternative message distribution model so that state can be retained at the processing node across iterations.

The Schimmy Trick

In a recent research paper, Jimmy Lin and Michael Schatz use a clever partition() algorithm in Map /Reduce which can achieve "stickiness" of graph distribution as well as maintaining a sorted-order of node id on disk.

The whole graph is broken down into multiple files and stored in HDFS. Each file contains multiple records and each record describe a node and its corresponding adjacency list.

id -> [nodeProps, [[arcProps, toNodeId], [arcProps, toNodeId] ...]

In addition, the records are physically sorted within the file by their node id.

There will be as many reducers as the number of above files and so each Reducer task is assigned with one of this file. On the other hand, the partition() function assign all nodes within the file to land on its associated reducer.

Mapper does the same thing before, except the first line in the method is removed as it no longer need to emit the graph.

Reducer will receive all the message emitted from the mapper, which is sorted by the Map/Reduce framework by the key (which happens to be the node id). On the other hand, the reducer can open the corresponding file in HDFS, which also maintain a sorted list of nodes based on their ids. The reducer can just read the HDFS file sequentially on each reduce() call and confident that all preceding nodes in the file has already received their corresponding messages.

reduce(id, list_of_msg) {
   nodeInFile = readFromFile()

   # Emit preceding nodes that receives no message
   while(nodeInFile.id < id)
       emit(nodeInFile.id, nodeInFile)
   end

   result = 0

   for each msg in list_of_msg {
       result = aggregate(result, msg)
   }

   nodeInFile.value = result
   emit(id, nodeInFile)
}

Although the Schimmy trick provides an improvement over the classical way of map/reduce, it only eliminates the communication between the mapper and the reducer. At each iteration, the mapper still needs to read the whole graph from HDFS to the mapper node and the reducer still need to write the whole graph back to HDFS, which maintains a 3-way replication for each file.

Hadoop provides some co-location mechanism for the mapper and try to assign files that is sitting at the same machine to the mapper. However, this co-location mechanism is not available for the reducer and so reducer still need to write the graph back over the network.

Pregel Advantage

Since Pregel model retain worker state (the same worker is responsible for the same set of nodes) across iteration, the graph can be loaded in memory once and reuse across iterations. This will reduce I/O overhead as there is no need to read and write to disk at each iteration. For fault resilience, there will be a periodic check point where every worker write their in-memory state to disk.

Also, Pregel (with its stateful characteristic), only send local computed result (but not the graph structure) over the network, which implies the minimal bandwidth consumption.

Of course, Pregel is very new and relative immature as compared to Map/Reduce.

Google Pregel Graph Processing

A lot of real life problems can be expressed in terms of entities related to each other and best captured using graphical models. Well defined graph theory can be applied to processing the graph and return interesting results. The general processing patterns can be categorized into the following ...

1. Capture (e.g. When John is connected to Peter in a social network, a link is created between two Person nodes)
2. Query (e.g. Find out all of John's friends of friends whose age is less than 30 and is married)
3. Mining (e.g. Find out the most influential person in Silicon Valley)

Distributed and Parallel Graph Processing

Although using a Graph to represent a relationship network is not new, the size of network has been dramatically increase in the past decade such that storing the whole graph in one place is impossible. Therefore, the graph need to be broken down into multiple partitions and stored in different places. Traditional graph algorithm that assume the whole graph can be resided in memory becomes invalid. We need to redesign the algorithm such that it can work in a distributed environment. On the other hand, by breaking the graph into different partitions, we can manipulate the graph in parallel to speed up the processing.

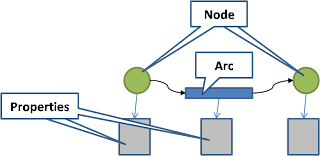

Property Graph Model

The paper “Constructions from Dots and Lines” by Marko A. Rodriguez and Peter Neubauer illustrate the idea very well. Basically, a graph contains nodes and arcs.

A node has a "type" which defines a set of properties (name/value pairs) that the node can be associated with.

An arc defines a directed relationship between nodes, and hence contains the fromNode, toNode as well as a set of properties defined by the "type" of the arc.



General Parallel Graph Processing

Most of the graph processing algorithm can be expressed in terms of a combination of "traversal" and "transformation".

Parallel Graph Traversal

In the case of "traversal", it can be expressed as a path which contains a sequence of segments. Each segment contains a traversal from a node to an arc, followed by a traversal from an arc to a node. In Marko and Peter's model, a Node (Vertex) contains a collection of "inE" and another collection of "outE". On the other hand, an Arc (Edge) contains one "inV", one "outV". So to expressed a "Friend-of-a-friend" relationship over a social network, we can use the following

./outE[@type='friend']/inV/outE[@type='friend']/inV

Loops can also be expressed in the path, to expressed all persons that is reachable from this person, we can use the following

.(/outE[@type='friend']/inV)*[@cycle='infinite']

On the implementation side, a traversal can be processed in the following way

1. Start with a set of "context nodes", which can be defined by a list of node ids, or a search criteria (in this case, the search result determines the starting context nodes)
2. Repeat until all segments in the path are exhausted. Perform a walk from all context nodes in parallel. Evaluate all outward arcs (ie: outE) with conditions (ie: @type='friend'). The nodes that this arc points to (ie: inV) will become the context node of next round
3. Return the final context nodes

Such traversal path can also be used to expressed inference (or derived) relationships, which doesn't have a physical arc stored in the graph model.

Parallel Graph Transformation

The main goal of Graph transformation is to modify the graph. This include modifying the properties of existing nodes and arcs, creating new arcs / nodes and removing existing arcs / nodes. The modification logic is provided by a user-defined function, which will be applied to all active nodes.

The Graph transformation process can be implemented in the following steps

1. Start with a set of "active nodes", which can be defined by a lost of node ids, or a search criteria (in this case, the search result determines the starting context nodes)
2. Repeat until there is no more active nodes. Execute the user-defined transformation which modifies the properties of the context nodes and outward arcs. It can also remove outwards arcs or create new arcs that point to existing or new nodes (in other words, the graph connectivity can be modified). It can also send message to other nodes (the message will be picked up in the next round) as well as receive message sent from other nodes in the previous round.
3. Return the transformed graph, or a traversal can be performed to return a subset of the transformed graph.

Google's Pregel

Pregel can be thought as a generalized parallel graph transformation framework. In this model, the most basic (atomic) unit is a "node" that contains its properties, outward arcs (and its properties) as well as the node id (just the id) that the outward arc points to. The node also has a logical inbox to receive all messages sent to it.

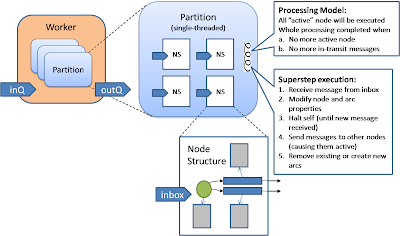

The whole graph is broken down into multiple "partitions", each contains a large number of nodes. Partition is a unit of execution and typically has an execution thread associated with it. A "worker" machine can host multiple "partitions".


The execution model is based on BSP (Bulk Synchronous Processing) model. In this model, there are multiple processing units proceeding in parallel in a sequence of "supersteps". Within each "superstep", each processing units first receive all messages delivered to them from the preceding "superstep", and then manipulate their local data and may queue up the message that it intends to send to other processing units. This happens asynchronously and simultaneously among all processing units. The queued up message will be delivered to the destined processing units but won't be seen until the next "superstep". When all the processing unit finishes the message delivery (hence the synchronization point), the next superstep can be started, and the cycle repeats until the termination condition has been reached.

Notice that depends on the graph algorithms, the assignment of nodes to a partition may have an overall performance impact. Pregel provides a default assignment where partition = nodeId % N but user can overwrite this assignment algorithm if they want. In general, it is a good idea to put close-neighbor nodes into the same partition so that message between these nodes doesn't need to flow into the network and hence reduce communication overhead. Of course, this also means traversing the neighboring nodes all happen within the same machine and hinder parallelism. This usually is not a problem when the context nodes are very diverse. In my experience of parallel graph processing, coarse-grain parallelism is preferred over fine-grain parallelism as it reduces communication overhead.

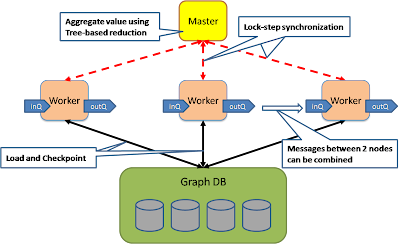

The complete picture of execution can be implemented as follows:


The basic processing unit is a "thread" associated with each partition, running inside a worker. Each worker receive messages from previous "superstep" from its "inQ" and dispatch the message to the corresponding partition that the destination node is residing. After that, a user defined "compute()" function is invoked on each node of the partition. Notice that there is a single thread per partition so nodes within a partition are executed sequentially and the order of execution is undeterministic.

The "master" is playing a central role to coordinate the execute of supersteps in sequence. It signals the beginning of a new superstep to all workers after knowing all of them has completed the previous one. It also pings each worker to know their processing status and periodically issue "checkpoint" command to all workers who will then save its partition to a persistent graph store. Pregel doesn't define or mandate the graph storage model so any persistent mechanism should work well. There is a "load" phase at the beginning where each partition starts empty and read a slice of the graph storage. For each node read from the storage, a "partition()" function will be invoked and load the node in the current partition if the function returns the same node, otherwise the node is queue to another partition who the node is assigned to.

Fault resilience is achieved by having the checkpoint mechanism where each worker is instructed to save its in-memory graph partition to the graph storage periodically (at the beginning of a superstep). If the worker is detected to be dead (not responding to the "ping" message from the master), the master will instruct the surviving workers to take up the partitions of the failed worker. The whole processing will be reverted back to the previous checkpoint and proceed again from there (even the healthy worker need to redo the previous processing). The Pregel paper mention a potential optimization to just re-execute the processing of the failed partitions from the previous checkpoint by replaying the previous received message, of course this requires keeping a log of all received messages between nodes at every super steps since previous checkpoint. This optimization, however, rely on the algorithm to be deterministic (in other words, same input execute at a later time will achieve the same output).

Further optimization is available in Pregel to reduce the network bandwidth usage. Messages destined to the same node can be combined using a user-defined "combine()" function, which is required to be associative and commutative. This is similar to the same combine() method in Google Map/Reduce model.

In addition, each node can also emit an "aggregate value" at the end of "compute()". Worker will invoke an user-defined "aggregate()" function that aggregate all node's aggregate value into a partition level aggregate value and all the way to the master. The final aggregated value will be made available to all nodes in the next superstep. Just aggregate value can be used to calculate summary statistic of each node as well as coordinating the progress of each processing units.

I think the Pregel model is general enough for a large portion of classical graph algorithm. I'll cover how we map these traditional algorithms in Pregel in subsequent postings.

Reference

http://www.slideshare.net/slidarko/graph-windycitydb2010

Strategy for software engineering position interview

From my experience in hiring and attending job interviews, employers are generally looking at 5 areas when hiring a software engineer ...

1. Technical knowledge of specific technology product
2. Experience of the business problem domain
3. General technical and architecture sense
4. Personality and working style
5. IQ, problem solving skills


While 1 to 4 are very straightforward to answer, the most interesting and challenging part is the item (5) because there are effectively no time to prepare. Depends on how good you can manage pressure, you brain can be totally blank at the interview session.

I personally believe that a short interview doesn't necessary reflects a person's ability in doing the actual work. I personally have worked with many people who is a high performer in work but a poor interviewee. So don't lose confidence because you fail an interview, there is a factor of luck involved in this process.

Nevertheless, most employers are willing to accept a higher false negative, but the chance of false positive must be very low. Because the pass rate of these IQ and algorithm questions are generally pretty low, it is a very effective means of filtering the candidates. Therefore, be able to tackle this kinds of question well is a critical success factor of interviewing.

Notice that there is no substitution of "good knowledge", "high IQ" and "the ability to speak/think under a pressured environment", but I've found there are some very useful technique and strategies.

1. Rephrase the question slowly in your own words

This can help you to make sure you fully understand the question and clarify if there is any hidden assumptions you have made. Repeat the question "slowly" also gives you more time to think.

From the interview perspective, he/she can see clearly the candidate's ability to digest a problem.

2. Construct a Visual model of the problem

Use a whiteboard, or paper (if this is a phone interview) to diagram the problem that you perceive. Our brain is good in understanding picture than words so having a diagram will be very useful to come up with solution ideas.

From an interview's perspective, he/she can see a clear picture how you analyze the problem.

3. Use a special, simple case to guide you

Never try to tackle the general problem at first, start with a super-simple, special case, and think how you would solve this simple case first. This is very helpful to reduce the amount of things that you need to consider and let you focus in the core part of the problem.

4. Start with a very naive solution as a baseline

Tell the interviewer that you want to start with a very naive solution to establish a baseline. The naive solution can usually be constructed using a brute-force approach (try all combination until you find a matched solution). After that analyze the complexity of this naive solution as a baseline for future comparison.

5. Improve your solution

At this stage, you need to evolve and improve your solution. Here are some general techniques.

• Divide and conquer: Decompose the problem into smaller ones and solve each sub-problem separately, then combine the solutions for the overall problem.
• Reduce to well-known algorithm models: Try to model your problem in terms of well-studied computer science data structure model (e.g. Tree, Graph, Search, Sort) and then apply well known algorithm to solve them

• Recursive structure: Try to structure your problem in a recursive form. Finding the solution for the base case and then expand the solution in a recursive manner.

• Greedy method: Try to modify attributes of your current best solution to see if you can get a better one. Watch out of being trapped in a local optimal solution.

• Approximation: Instead of finding an exact solution, try to see if it is acceptable to find an approximate solution. Probabilistic approach (try 100 random combination and pick the best outcome)

6. Keep talking while you think

Don't wait until you fully figure out the answer. Keep talking while you are thinking about the solution so the interviewer understand how you analyzing things, and you are also showing how well you can express your thoughts. It is also easier for the interviewer to guide you or give you hints. And finally you may impressed the interviewer even you cannot get to the exact answer.


7. Generalize your solution for the final answer

After you find a working solution for the simple case, extend the simple case to see how you would solve it. See if you can find a general pattern how the solution would look like. Once you find it, generalize your solution for the general problem

From the interview's perspective, he/she can assess if the candidate can think in different levels of abstraction, and the ability to apply a solution in a broader scope of problem.


8. Remember the interview hasn't ended at the office building

You always have the chance to think through the question that you haven't given satisfactory answer after you walk out from the office. Submit a solution via email once you get back home (do it ASAP though), along with a thank you note to the interviewer.

The NOSQL Debate

I have attended the Stanford InfoLab conference, and there are 2 panel discussions in Cloud computing transaction processing and analytic processing.

The session turns out to be a debate between people from the academia side with the open source developer. Both sides have their points ...

Background of RDBMS

RDBMS is based on a clear separation between application logic and data management. This loose coupling allows application and DB technologies to be evolved independently.

This philosophy drives the DBMS architecture to be more general in order to support a wide range of applications. Over many years of evolution, it has a well-defined data model + query model based on relational algebra. On the other hand, it also have a well-defined transaction processing model.

On the other hand, applications also benefit from having a unified data model. They have more freedom to switch their DB vendor without too much of code changes.

For OLTP applications, the RDBMS model has been proven to be highly successful in many large enterprises. The success of both Oracle and MySQL can speak to that.

For Analytic applications, the RDBMS model is also used widely for implementing data warehousing based on a STAR schema model (composed of Facts table and Dimension tables).

This model also put DBA into a very important position in the enterprise. They are equipped with sophisticated management tools and specialized knowledge to control the commonly shared DB schema.

Background of NOSQL

In the last 10 years, there are a very few of highly successful web2.0 companies whose applications have gone beyond what a centralized RDBMS can handle. Partition data across many servers and spread the workload across them seems to be a reasonable first thing to try. Many RDBMS solution provides a Master/Slave replication mechanism where one can spread the READ-ONLY workload across many servers, and it helps.

In a partitioned environment, application needs to be more tolerant to data integrity issues, especially when data is asynchronously replicated between servers. The famous CAP theorem from Eric Brewer capture the essence of the tradeoff decisions for highly scalable applications (which must have partition tolerance), they have to choose between "Consistency" and "Availability".

Fortunately, most of these web-scale application have a high tolerance in data integrity, so they choose "availability" over "consistency". This is a very major deviation from the transaction processing model of RDBMS which typically weight "consistency" much higher than "availability".

On the other hand, the data structure used in these web-scale application (e.g. user profile, preference, social graph ... etc) are much richer than the simple row/column/table model. Some of the operations involves navigation within a large social graph which involves too many join operations in a RDBMS model.

The "higher tolerance of data integrity" as well as "efficiency support for rich data structure" challenges some of the very fundamental assumption of RDBMS. Amazon has experimented their large scale key/value store called Dynamo and Google also has their BigTable column-oriented storage model, both are designed from the ground up with a distributed architecture in mind.

Since then, there are many open source clones based on these two models. To represent the movement of this trend, Eric Evans from Rackspace coin a term "NOSQL". This term in my opinion is not accurately reflecting the underlying technologies but nevertheless provide a marketing term for every non RDBMS technologies to get together, even those (e.g. CouchDB, Neo4j) who is not originally trying to tackle the scalability problem.

Today, NOSQL provides an alternative approach for Non-Relational Database.

For analytical application, they also take a highly-parallel brute-force processing model based on the Map/reduce model.

The Debate

There are relatively few criticism on the data model aspects. Jun Rao from IBM Lab summarized the key difference between the philosophy. The traditional RDBMS approach is first to figure out the right model, and then provide an implementation and hope it is scalable. The modern NOSQL approach is doing the opposite by first figuring out how a highly scalable architecture looks like and then layer a data model on top of that. Basically people on both camps agree that we should use a data model that is optimized for the application's access patterns, weakening the "one-size-fits-all" philosophy of RDBMS.

Most of the debate is centered around the transaction processing model itself. Basically RDBMS proponents thinks NOSQL camp hasn't spent enough time to understand the theoretical foundation of the transaction processing model. The new "eventual consistency" model is not well-defined and different implementations may differs significantly with each other. This means figuring out all these inconsistent behavior lands on the application developer's responsibilities and make their life much harder. Hard to reason about the DB's behavior can be very dangerous if the application made wrong assumption about the underlying data integrity guarantees.

While agree that application developers now have more to worry about, the NOSQL camp argues that this is actually a benefit because it gives the domain-specific optimization opportunities back to the application developers who now no longer constrained by a one-size-fits-all model. But they admit that making such optimization decision requires a lot of experience and can be very error-prone and dangerous if not done by experts.

On the other hand, the academia also make a note that the movement to NOSQL may deem fashionable and cool to new technologists who may not have the expertise and skills. The community as a whole should articular the pros and cons of NOSQL.

Notice that this is not the debate of the first time. StoneBraker has written a very good article from the RDBMS side.
